SM 530 (Discontinued replaced by NeoDen 3V)
Technical Information:
| Version | TM240A |
| Applicable PCB | 20mm*20mm～400mm*360mm |
| Placement head quantity | 2 |
| Mounting capability | 7000 components per hour |
| Mounting accuracy | ±0.025mm |
| Applicable Components | 0402-5050，SOP, QFN, IC |
| Components supply configuration | Tape reel, bulk package (IC) |
| Tape width | 8mm, 12mm, 16mm |
| Feeders | 28 (8mm=21, 12mm=4, 16mm=2, bulk IC=1) |
| External Dimension | L 980mm×W 655mm×H 285mm |
| Vacuum pump | -92KPA (Mute type pump) |
| Vacuum pump quantity | 2 (built-in) |
| Power supply | 220V, 50Hz （Convertible to 110V） |
| Average working power | 100W |
| Weight | G.W: 65KG (N.W: 35KG) |
| Packing size | L 112cm×W 81cm×H 47cm |
Product Specification:

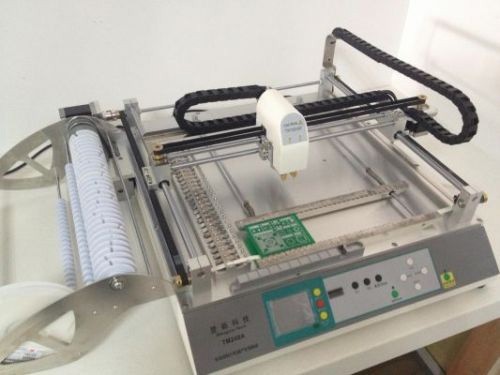

Desktop Pick and Place Machine TM240A
1. Product Features:
1) The machine have both Chinese and English version, user could switch the language depends on your needs.
2) Coverfoil automated peel away device: Very convenient, and could make sure coverfoil automatically peel away smoothly and without jerking from the tape.
3) With 2 placement heads: 2 components could be picked and placed at the same time at every working stroke of the machine.
4) Could place components on the correct footprints with 360 degree orientation, and with required precision.
5) Automatic vacuum detection function, which could automatically recognize missing components, and remind user timely.
6) TM220A can mount 0402, 0603, 0805, 1206, 1812, 2010, 2512, SOT-23, LED (3528, 5050), SOT89, SOP-8, SOP-14, SOP-16, SOT-223, SOT-252 and IC components （IC size under 16*16mm, PIN foot less than 100, fine-pitch above 0.5mm, the height of component less than 3mm） with required precision.
7) No vision system, the self-developed Laser positioning principle is quite effective for this type of machine.
8) Totally 16 feeders, 8mm=12, 12mm=2, 16mm=1, and bulk package IC feeder = 1, you could choose between each feeders according to your component type.
9) Self developed Software operating system which is integral to the machine, no need to (and can not) attach to a separate computer. 8G SD Card would be big enough for you to setup hundred thousands files.
10) Integrated type of feeders, no need to buy extra mobile feeder arrays, which is quite cost saving.
11) Feeders are mechanized to automatically present the next component after the preceding one has been collected.
12) Easy and storability of programming, and high speed of changeover from one placement program to another.
13) The programming process is very simple and quick: use Protel tool to extract the PCB circuit coordinate file, and use the format transformation tool we provided to you to transform the file format, and then copy to the SD card, insert to the machine, then you could use the file directly.
14) Online programming function: could easily online programming if you don’t have PCB Circuit diagram.
15) Built-in mute type pump, no need to prepare additional pump. The noise is small, could be placed in normal working environment.
16) Small and lightweight: simple installation, convenient transportation.
17) Working power 100W: Environmental protection and energy saving.
2. Standard Accessories:
1) Pick and Place Machine TM220A: 1
2) 4 types of nozzle: Totally 6 (XS—2, S—2, M—1, L—1).
3) 8G SD Card: 1
4) Card reader: 1
5) Nozzle disassembly tool: 1sets
6) Adjustment tool for Nylon Spool Wheel
7) User manual: 1
8) Video training course: 1 sets
9) PCB Coordinate file transformation tool: 1
3. Why Choose:
1) The customer who operates on a small-to-medium scale will tend to opt for such a small desktop automatic pick and place system which is very convenient and easy use even without a technical assistance.
2) If the number of boards does not exceed a few hundred per working day, such a small desktop placement may well be the best choice.
3) Consider about the cost efficiency, the small desktop placement reaches its maximum cost efficiency in the middle range of production volume, particularly where full-time working is not always guaranteed.
4) A further factor which affects the choice of system is the product mix: if the boards are all customer-specific boards, each with a short or unpredictable length of run, and if production must be flexible and capable of coping with frequent changes, such small desktop placement may be best.
5) Our small desktop pick and place machine is cheaper, and writing if off is less of a problem when faced with a fluctuating and highly differentiated demand.
6）Avoid human error, more accurate and faster.
4、Warranty
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service support as well as a long-term factory price supply. We provide online Q/A and troubleshooting support and technical advice service.
Statement: These images and screenshots in this product manual may very slightly from the actual purchased product. For the more detailed information and technical issues solving, please browse our company website: www.neodentech.com. Welcome consult and download.
