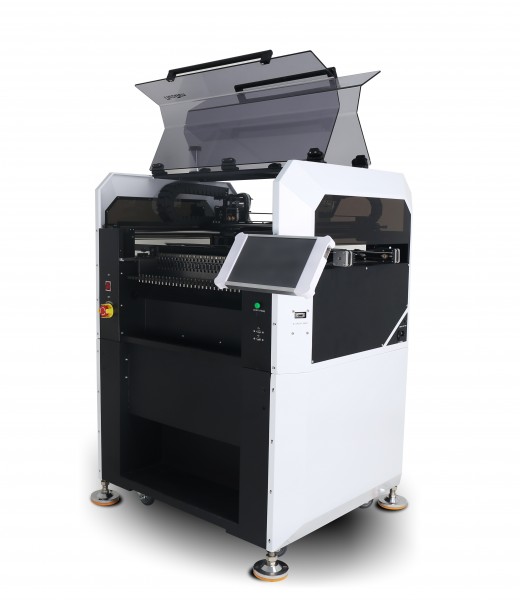

NeoDen S1
مشخصات فنی:
| Machine Style: | Single gantry with 4 heads |
| Placement Rate: | 6000 CPH |
| Alignment: | Flying Vision |
| Placement Accuracy: | +/- 0.02 mm |
| Component Range: | 0201 to 35 x 35 mm, Max 8mm Height |
| Feeder Capacity: | Max. Tape Feeder: 58, Vibration Feeder: 5, Tray feeder |
| Rotation: | +/- 180 |
| Max PCB Dimension: | 310 x 1500 mm |
| Electricity power : | 100V/220V 150W |
| Dimensions: | 800x750x580 mm (LxWxH ) |
| Net Weight: | 98 Kg |
مشخصات محصول:
Main Features:
1- Laser camera, flying alignment with high accuracy and high efficiency.
2- Fully modular design, with better power protection features and stability, easy after sales maintenance.
3- Comes with 4 heads, 6 SMD nozzles and automatic nozzle changer.
4- Linux system, ARM hardware core board improves significantly in low power consumption and scalability.
5- Automatic adjustment conveyor system.
6- User interface with touchscreen, no need keyboard or mouse, easy operation.
7- Linear encoders, monitors the entire coordinate system, which can improve the running speed and ensure placement accuracy.
8- Support 0201, LED, BGA, 0.4mm pitch QFP, SMT connectors, and many other components, all in one electronic feeders.
9- Support cut tape, loose, tube and tray components.
10- TUV NORD CE approved.
